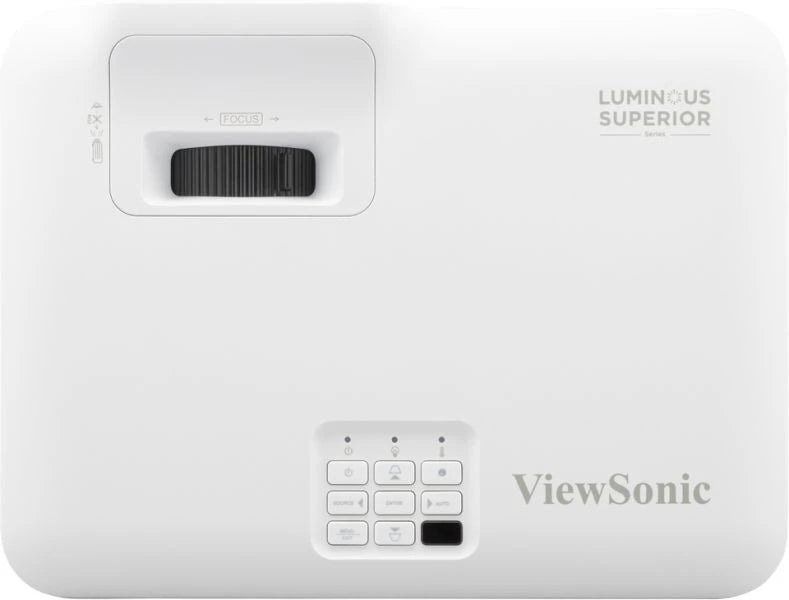

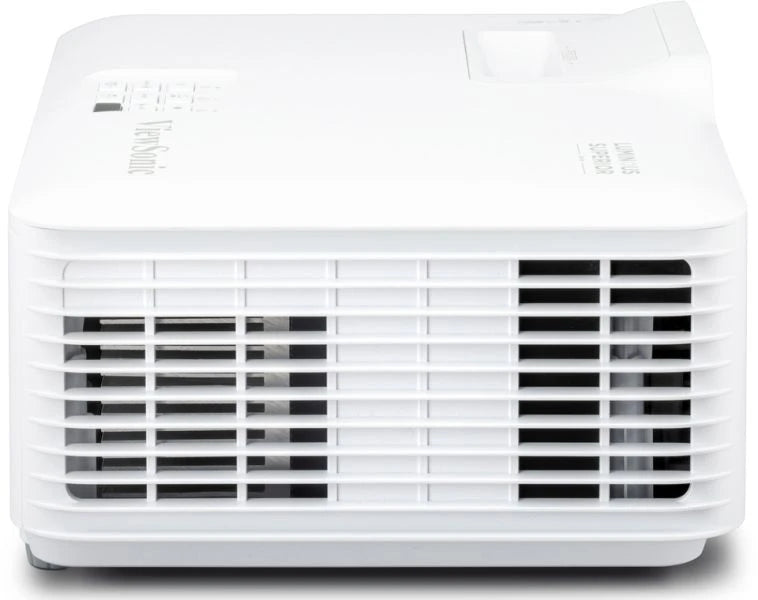

ViewSonic LSD400HD-ST Short Throw Laser Golf Simulator Projector

ViewSonic LSD400HD-ST Short Throw Laser Golf Simulator Projector

$1,299.99

LSD400HD ST Highlights:

4,000 ANSI Lumens, 1080p Full HD
0.5 short throw, 100" image from 1.1m
Up to 30,000-hour laser light source
Dedicated Golf Color Mode
360° flexible installation

FREE DELIVERY

Authorized Dealer

Shop high-end golf products from top brands

Best Pricing

Find it cheaper? We will match or beat the price

Any Questions? Contact Us

Call Us: +1 877-831-6589

Checkout Safely

Quantity

ViewSonic LSD400HD-ST Short Throw Laser Golf Simulator Projector

Description

The ViewSonic LSD400HD-ST Projector is a 4,000 ANSI Lumens 1080p laser projector made for spaces where every inch counts. As part of ViewSonic's Luminous Superior Series, it's built for commercial and educational use, and it works just as well in a home golf simulator room.

This projector uses 3rd generation laser phosphor technology. That means no lamp to replace, up to 30,000 hours of use, and up to 59% lower power draw than lamp-based projectors. It also turns on and off instantly, so you're never waiting around.

Its standout feature is the 0.5 short throw ratio. Place it just 1.1 meters from your screen and get a full 100" image. That makes it a strong fit for golf simulator setups where ceiling height and room depth are limited. It can scale up to a massive 300" display for bigger installs.

Image quality stays sharp thanks to a 0.65" DMD chip paired with DLP technology, giving you deep blacks and strong contrast. A sealed, filter-free engine (IP6X) keeps dust out and cuts down on maintenance. Add in H/V keystone correction, 4-corner adjustment, and 360° projection, and you get an installation that adapts to almost any room.

As an authorized ViewSonic reseller, we back every LSD400HD-ST Projector with genuine manufacturer support and warranty coverage.

Check out our other golf simulator projectors:

BenQ, ViewSonic, Eiki

Features

ViewSonic SD400HD-ST Features:

3rd-Gen Laser Phosphor Light Source
A 20% brighter, 32% more compact design than the previous generation. No lamp changes, up to 30,000 hours of life, and instant power on and off.

4,000 ANSI Lumens, 1080p Full HD
Bright, crisp images that hold up in rooms with ambient light, ideal for golf simulators, exhibitions, and retail displays.

0.5 Short Throw Ratio
Project a 100" image from just 1.1 meters away. Perfect for small rooms and garage golf simulator builds.

0.65" DMD Chip with High Native Contrast
Texas Instruments DLP technology delivers deep blacks and rich detail for a more realistic picture.

Up to 59% Lower Power Consumption
The lamp-free design cuts energy costs compared to competing lamp projectors.

Filter-Free, Sealed Engine (IP6X)
No filters to clean or replace. The sealed design blocks dust and keeps color performance consistent over time, with no yellowing.

H/V Keystone and 4-Corner Adjustment
Fix crooked or distorted images quickly, without needing a perfectly centered install.

360° Projection with 90° Portrait Mode
Mount it on a wall, ceiling, or floor. Great for creative displays, staging, and projection mapping beyond golf simulation.

Centralized LAN Control
Certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron. Manage multiple units from one system.

Dedicated Golf Color Mode
ViewSonic's color-tuning technology boosts greens and blues, making fairways and greens look more true to life.

USB-A Power Output for Wireless Casting
The built-in 5V/1.5A USB-A port can power the ViewShare Wireless Screen Casting Kit (sold separately), so you can stream and charge without an extra adapter.

Simple Software Updates
Update the projector's software over USB from your laptop. No trip to a service center needed.

Specifications

LSD400HD ST Specifications:

Projection

Projection System: 0.65" 1080P
Native Resolution: 1920 x 1080
Brightness: 4,000 ANSI Lumens (4,800 Center Lumens)
Contrast Ratio: 3,000,000:1
Display Color: 1.07 Billion Colors
Light Source: Laser Phosphor
Light Source Life: Up to 20,000 hours (Normal Mode) / 30,000 hours (SuperEco Mode)

Lens and Throw

Lens: F=2.8, f=7.51mm
Projection Offset: 132% +/- 10%
Throw Ratio: 0.5
Optical Zoom: Fixed
Digital Zoom: 0.8x to 2.0x
Image Size: 40" to 300"
Throw Distance: 0.44m to 3.29m (100" at 1.10m)
Keystone: H: +/- 15°, V: +/- 15°

Performance

Audible Noise: 32dB (Normal) / 27dB (Eco)
Input Lag: 16.7ms
Resolution Support: VGA (640 x 480) up to 4K UHD (3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K to 135KHz
Vertical Scan Rate: 24Hz to 120Hz

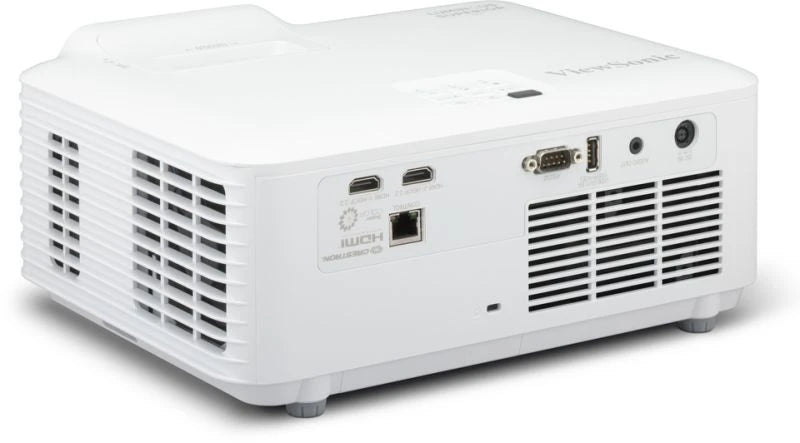

Connectivity

HDMI Inputs: 2 (HDMI 2.0, HDCP 2.2)
Audio Out: 1 (3.5mm)
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)

What's Included

ViewSonic LSD400HD-ST Projector
Power Cord

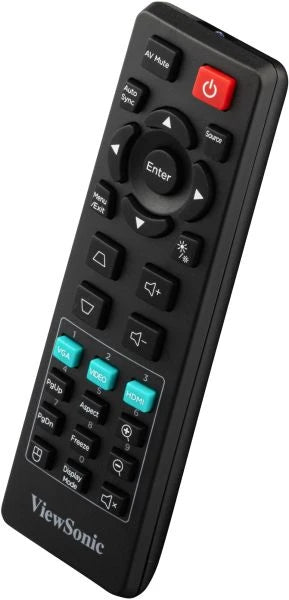

Remote Control
Quick Start Guide
Lens Cover

Resources

LSD400HD-ST Quick Start Guide

LSD400HD-ST User Manual

LSD400HD-ST Driver & Software

Shipping Information

This product ships in 1-2 business days over the standard order processing time (<24H)

Frequently Asked Questions

How close can I place the LSD400HD-ST to my golf simulator screen?

Its 0.5 short throw ratio lets you project a 100" image from about 1.1 meters away, so it fits well in smaller rooms and garages.

Do I need to replace a lamp over time?

No. The projector uses laser phosphor technology rated for up to 30,000 hours, so there's no lamp to buy or swap out.

Is the LSD400HD projector bright enough for a room with some ambient light?

Yes. At 4,000 ANSI Lumens, it holds up well in rooms that aren't fully dark, which is common in home golf simulator setups.

Can I mount LSD400HD ST on a ceiling or project onto a wall or floor?

Yes. It supports 360° projection and a 90° portrait mode, so ceiling, wall, and floor installs are all possible.

What is Golf Color Mode?

It's a picture setting built into the projector that enhances greens and blues, making grass and putting surfaces look more realistic.

Does the projector support wireless screen casting?

Yes, with the separately sold ViewShare Wireless Screen Casting Kit. The projector's USB-A port can power the dongle directly.

Am I buying from an authorized dealer?

Yes. We are an authorized ViewSonic reseller, so every unit comes with full manufacturer support and warranty coverage.
